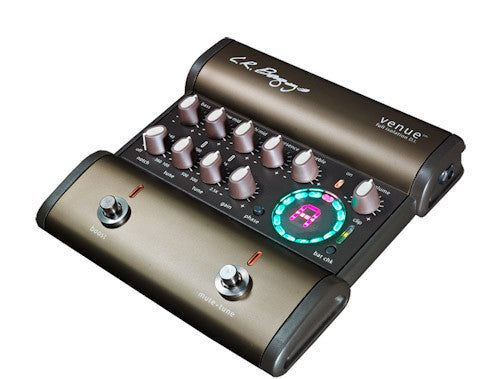

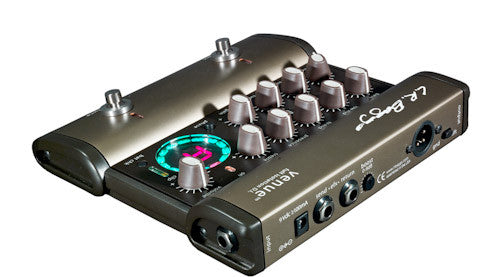

LR Baggs Venue DI Preamp

The Venue DI is an acoustic preamp that combines a transformer-coupled DI output for maximum isolation, an EQ specifically tuned for acoustic instruments, a volume boost footswitch to complement your playing styles, and an easy to read chromatic tuner with a mute/tune footswitch. Combining the features from 3 stompboxes into 1, the Venue DI brings a new level of fidelity and usefulness to performing acoustic musicians. Assembled in the USA with 100% quality control testing.

Features
• Adjustable Gain for both passive and active pickups
• 5 band EQ with tunable low-mid and high-mid bands
• Garret Null notch filter for effective feedback control
• Phase inversion for best sound and feedback control
• Full chromatic tuner with footswitch mute/tune function
• Adjustable volume boost footswitch
• Full isolation audio transformer-coupled DI
• Clip meter to visually optimize gain setting
• 4 segment battery status gauge
• XLR and 1/4” outputs
• Series FX loop (separate jacks for send and return)
• Works with 9v battery or DC adapter (not provided)
• Carrying case included

Specifications Specifications
• Size: 7.625” x 7.5” x1.5”
• Weight: 2.2 lbs
• Gain: -12dB to +26dB
• Boost: 0dB to +9dB adjustable EQ
• Notch -21dB, sweepable from 60Hz to 320Hz, 1/8 Octave
• EQ - Bass +/- 12dB @ 90Hz
• EQ - Lo Mid +/- 12dB @ 250Hz, sweepable from 100Hz to 500Hz
• EQ - Hi Mid +/- 12dB @ 1kHz, sweepable from 500Hz to 2.8kHz
• EQ - Presence +/- 12dB @ 3kHz
• EQ - Treble +/- 12dB @ 10kHz
• Input Impedance: 10 megohms
• Output Impedance: 600 ohms
• Battery life: 40 hrs (depends on tuner usage)
• Power supply: 9VDC with 100mA minimum (Recommended-Not included)
